Ajmera Group - Gear Box

Speed Reducer incorporate one of the best design, simple in construction with liberal ribbing increasing heat dissipating area. Gear box is made of close grain cast iron, specially designed fan, effective in either direction of rotation. The worm is made of alloy steel. The worm wheel is cast from special phosphorbronze. Worm and worm shafts are supported on ball or roller bearings. A positive lubrication system, operative in either direction of rotation, is effective in any mounting position.

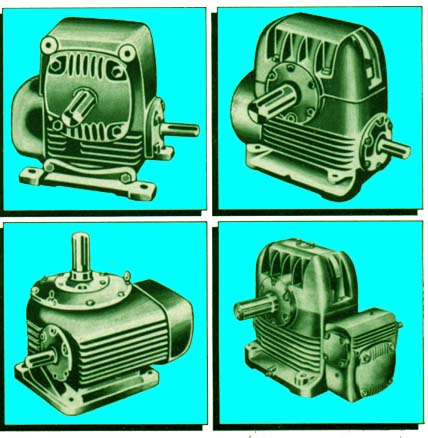

Worm reducers available in Universal mounting type and fixed base mounting type. Universal type permits a wide variety of mounting positions by changing the necessary mounting legs. The range includes five sizes from 1.1/8" to 3.1/2" shaft centers and ratio between 5:1 to 70:1 in single stage and upto 4900:1 in two stage(Double Reduction).

Fixed base mounting type Gear box is available in ten size from 4" to 17" shaft center and ratio between 5:1 to 70:1 in single stage and upto 4900:1 in two stage(Double Reduction).

Worm Reducers are available in various types like : Adaptable, Underdriven, Overdriven, Vertical, Double Reduction, Hollow Shaft, Shaft Mounted, Heliworm and as per client’s requirement.

Worm Type - Universal	Worm Hor. & Ver-Fixed	Worm - Double.
Helical - Hor. & Ver.	Bevel Gear Box.	Helical Gear Reducer
Differencial Gear Box	-----	-----
