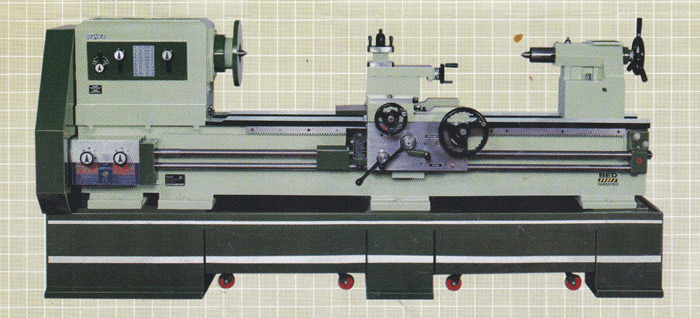

| ALL GEARED LATHE MACHINE |
 |
| |
| Technical Specification |
MMT 34 |
MMT 35 |
MMT 40 |
MMT 43 |
MMT 50 |
MMT 60 |
| Height of centers |
170 |
175 |
200 |
215 |
250 |
300 |
| Swing over bed |
340 |
350 |
400 |
430 |
500 |
600 |
| Swing over slide |
180 |
190 |
240 |
270 |
290 |
390 |
| Width of Bed |
240 |
242 |
280 |
305 |
325 |
375 |
| Spindle bore |
40 |
40 |
51 |
52 |
53 |
80 |
| Spindle nose |
LOO-type |
LOO-type |
LO-type |
LO-type |
LO-type |
LO-type |
| Spindle speed no. |
8 |
16 H-L |
16 H-L |
16 H-L |
18 H-L |
16 H-L |
| RPM |
60-1025 |
48-1535 |
48-1535 |
40-1415 |
30-1550 |
30-1050 |
| Cross slide travel |
175 |
180 |
210 |
240 |
260 |
325 |
| Top slide travel |
125 |
125 |
125 |
130 |
150 |
150 |
| Tail stock sleeve |
MT-3 |
MT-3 |
MT-3 |
MT-4 |
MT-4 |
MT-4 |
| Quill dia./travel |
50/125 |
50/125 |
50/125 |
75/150 |
75/150 |
75/150 |
| Tool shank section |
20x20mm |
20x20mm |
20x20mm |
20x20mm |
25x25mm |
25x25mm |
| Feeds longitudinal no. |
60/0.08-1 |
60/0.08-1 |
60/0.08-1 |
60/0.08-1 |
60/0.08-1 |
60/0.08-1 |
| Feeds transverse no. |
60/0.02-0.25 |
60/0.02-0.25 |
60/0.02-0.25 |
60/0.02-0.25 |
60/0.02-0.25 |
60/0.02-0.25 |
| Metric thread no. |
40/0.4-7mm |
40/0.4-7mm |
40/0.4-7mm |
40/0.4-7mm |
40/0.4-7mm |
40/0.4-7mm |
| Thread per inch no. |
45/70-4 TPI |
45/70-4 TPI |
45/70-4 TPI |
45/70-4 TPI |
45/70-4 TPI |
45/70-4 TPI |
| Lead screw |
4 TPI |
4 TPI |
4 TPI |
4 TPI |
4 TPI |
4 TPI |
| Main motor |
1.5kw |
1.5kw |
1.5kw |
2.25kw |
3.7kw |
3.7kw |
| Admit between center |
600/750 |
750/1000 |
750/1000 |
1000/1500/2500 |
1000/1600/2500 |
1500/2500/3000 |
| Bed length feet |
4.5'/5' |
5'/6' |
5'/6' |
6'/8'/11' |
7'/9'/12' |
9'/12'/14' |
| Weight (kg) Approximate |
600/650 |
750/800 |
850/900 |
1000/1200/1500 |
1300/1500/1800 |
1900/2300/2600 |
|
| |
| |
|
|
|
| |
|
| |
|
